Updating KwikWork

The following steps are required  to update KwikWork for Content Navigator.

Expand the installer

The installer needs to be expanded on the Content Navigator server by following the steps below:

Update KwikWork Database

When upgrading from a version prior to 4.0, the OrientDb databases need to up exported so that they can up upgraded when the new version of KwikWork is deploy.  This is achieved by performing the following steps :

1. Expand the export tool that is packaged with KwikWork Installer.



   unzip OrientExport.zip

2. Make a backup copy of the <working folder>/OrientDB folder.


3. Change the default values in the "exportdb.bat" or "exportdb.sh" as needed.


4. Open CMD prompt or Terminal to this directory and run the exportdb.bat (.sh) file.


5. Once successfully exported, verify the backups have been created at <working folder>/OrientDB/backups.


6. Continue to next section to update the KwikWork Engine.

Note: These instructions are also contain in the Readme.text file that is packaged in the OrientExport.zip.

Update the KwikWork Engine

1. Log into the WebSphere Integrated Solutions Console on the application server where IBM Content Navigator is installed then navigate to Applications→Application Types → WebSphere enterprise applications then uninstall the 'kwcn-engine' application.

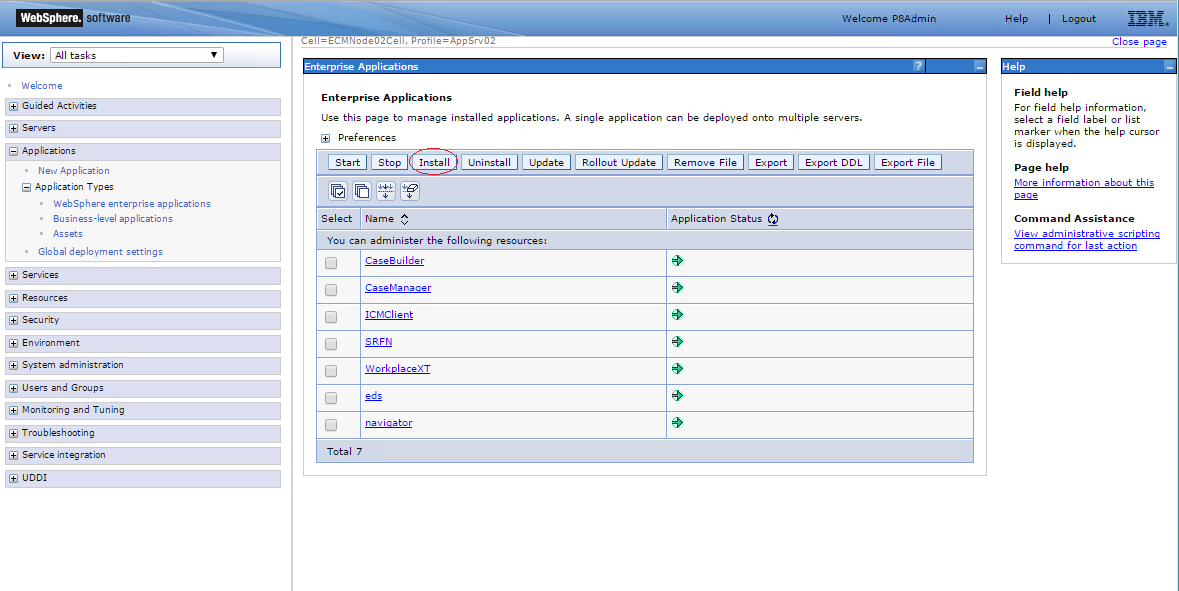

2. Click the install button above the list of installed applications.

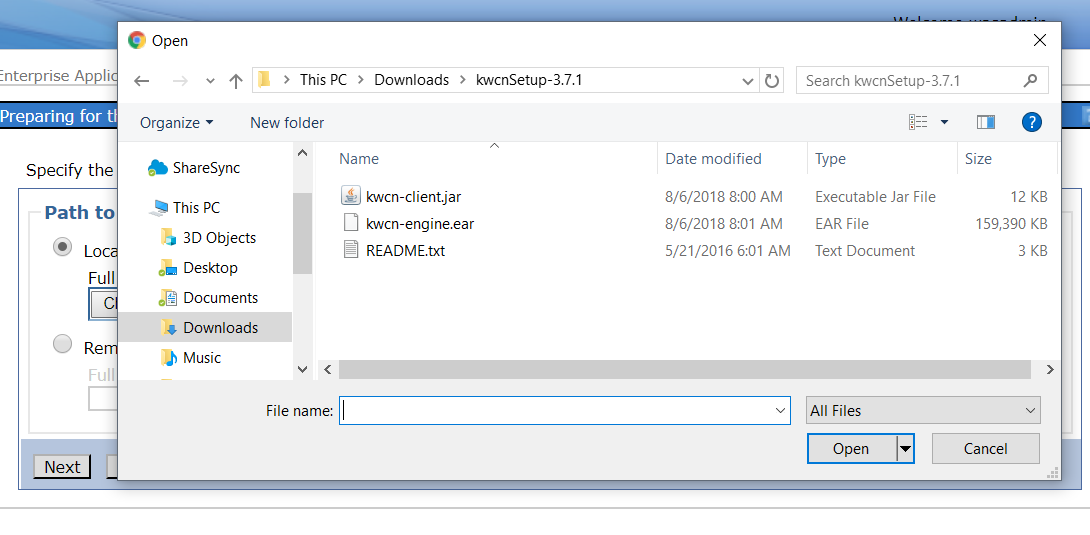

3. Click the 'Choose File' button under 'Path to the new application' and locate the kwcn-engine.ear file in the installer that was extracted earlier.  Select the ear file, click 'Open' on the dialogue box then click Next.

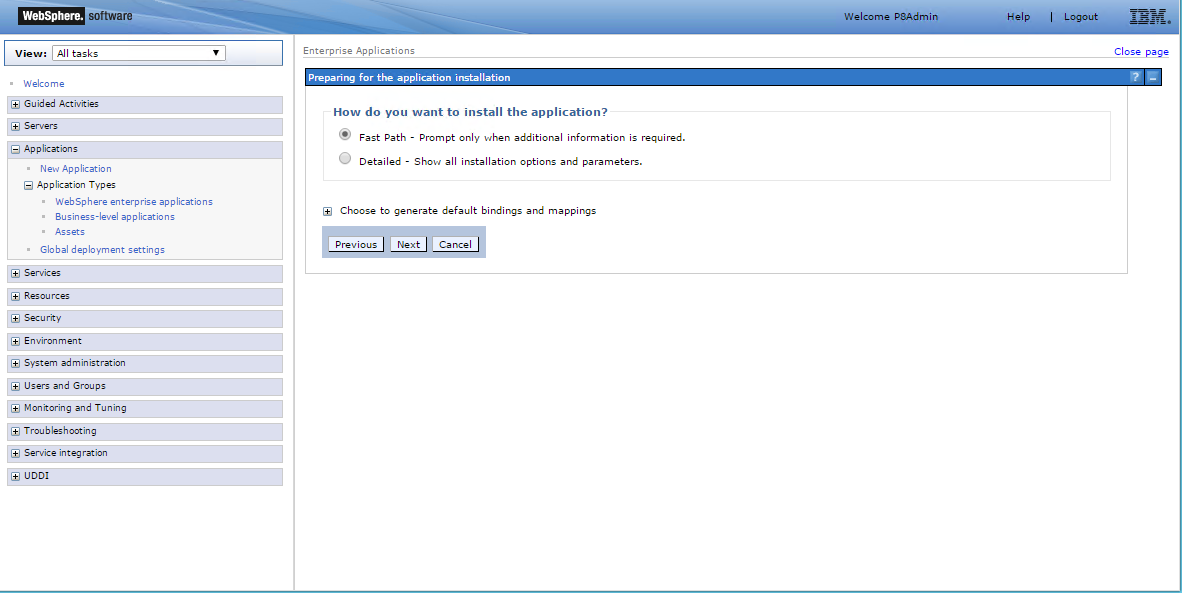

4. Choose 'Fast Path' if it is not already selected then click Next.










5. Leave the default values for all steps of the install process.



6. Finally verify the settings on the Summary page and click 'Finish' for WebSphere to install the Kwcn Engine then save to master configuration.

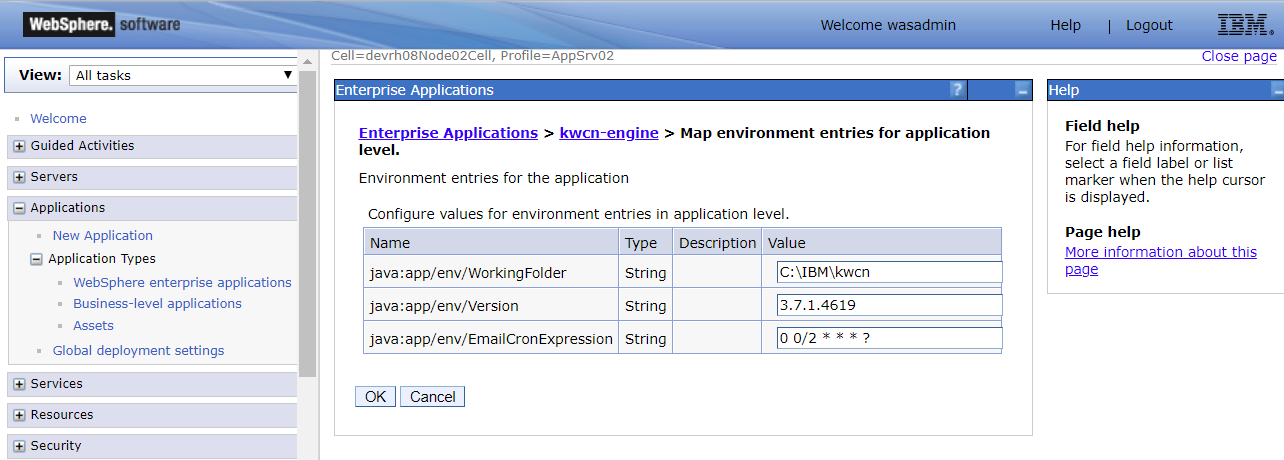

7. Edit the newly installed kwcn-engine and click 'Environment entries for the application' then update the WorkingFolder to point to the location on the server where KwikWork configurations will be stored.  Click 'Ok' and save to master configuration.

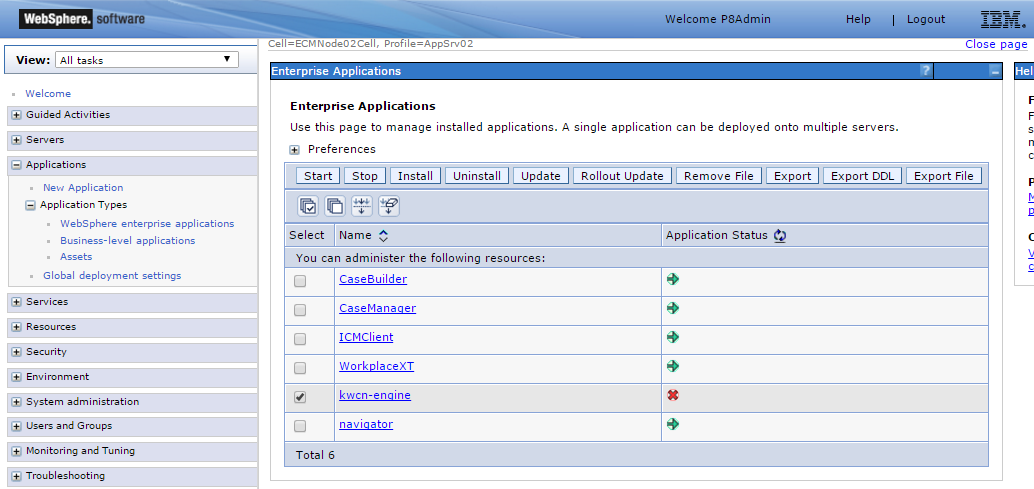

8. Finally, start the KwikWork Engine by checking the box for kwcn-engine then clicking Start.














Update KwikWork Objects

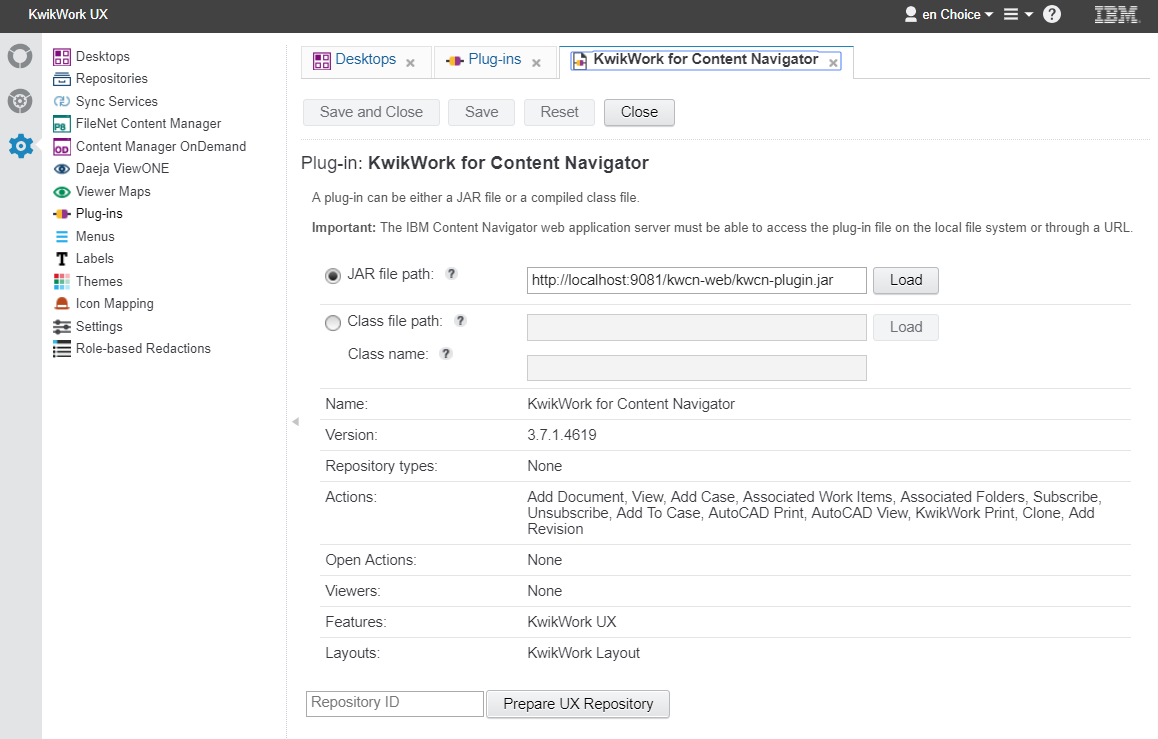

1. Navigate to the desktop where the KwikWork features were added then edit the KwikWork for Content Navigator plugin in the Administration View.
2. Reload the KwikWork for Content Navigator plugin.
3. In the field at the bottom of the settings, enter the name of the primary repository of the desktop then click the 'Prepare UX Repository' button.  NOTE: The Prepare Repository should be performed by an administrator that has full control over all classes created by KwikWork and any objects created from those classes.








4. Finally click the 'Save and Close' button to save changes.



Final Steps

1. Verify Daemon Repository credentials for all desktops.

2. The following permissions need to be set in FileNet for any users that will be using the KwikWork UX.



   Object	Symbolic Name	Display Name	User Permissions	Description
   Custom Objects
   KwikWork Service Queue Request Class	KwQueueRequest	KwikWork Service Queue Request	None required	Used for KwikWork rendition service
   KwikWork Scheduled Task Class	KwScheduledTask	Scheduled Task	Modify Permissions	Used when creating and updating calendar events and tasks
   Folder
   Email Folder Class	KwEmailFolder	Email Folder	Create	Used to store new unfiled emails that are sent to KwikWork without a case identifier in the subject
   kwcn/user-folder	username	username	Create sub-folder, File and Un-file	Used to store un-filed emails
   User Folder Class	KwUserFolder	User Folder	Create	When users update their KwikWork Preferences, a user folder is created
   Document Class
   Contact	KwContact	Contact	Create	Used to create contacts within KwikWork
   Contact Group	KwContactGroup	Contract Group	Create	Used to create Contact Groups within KwikWork
   Email   Correspondence	KwEmail	Email Correspondence	Create	Used when emails are sent from within the KwikWork
   Email Attachment	KwAttachment	Email Attachment	View	Used when emails with attachments are sent to KW by email. Done by admin account in backend.
   KwikWork Form Attachment	kwFormAttachment	KwikWork Form Attachment	View	Used for launching workflow from HTML Form
   KwikWork Rendition	KwRendition	KwikWork Rendition	Create and Delete	Used when documents are printed using the KwikWork Print or AutoCAD print and when DWG files are rendered in the Unified View
   KwikWork Report	KwReport	KwikWork Report	View	Class Used to store KwikWork Report definitions
   Upload	KwUpload	Upload	Modify Permissions	Used when documents are added using the Upload Manager



   Note:  All objects above require that the Administrator or Administrator group have Full-Control for Security and the Default Instance Security
